HP OpenVMS Systems Documentation

HP COBOL
Reference Manual

Technical Note

• READ statement execution can result in these FILE STATUS data item values:

  File Status	File Organization	Access Method	Meaning
  00	All	All	Read is successful; record is available; lock acquired as requested
  02	Ind	All	Read is successful; duplicate key detected
  04	All	All	Record read larger or smaller than record area
  10	All	Seq	No next logical record (at end), optional file not present (at end), or no valid next record (at end)
  14	Rel	Seq	Relative record number too large for relative key data item (at end)
  23	Ind, Rel	Rand	Record not in file (invalid key) or optional file not present (invalid key)
  46	All	Seq	No valid next record
  47	All	All	File not open, or incompatible open mode
  90	All	All	Record locked by another user; record is available in record area; no lock is acquired (soft lock for Hewlett-Packard standard locking only)
  92	All	All	Record locked by another user; record is not available; no lock is acquired (hard lock)
  30	All	All	All other permanent errors

• On Alpha and I64 systems, use START before initiating a sequence of either READ NEXT statements or READ PRIOR/READ PREVIOUS statements. You should use START, if you switch between READ NEXT and READ PRIOR/READ PREVIOUS or vice versa.
• On Alpha and I64 systems, the order of duplicate key values for a descending key is not necessarily the same as the order of duplicate key values for READ PRIOR/READ PREVIOUS used with an ascending key defined as the same file record location as the descending key.

Additional References

• LOCK MODE clause in the Section 4.2.1, FILE_CONTROL paragraph in Chapter 4
• Section 4.2.10, I-O-CONTROL paragraph in Chapter 4
• Section 6.1.4, Scope of Statements
• Section 6.6.8, I-O Status
• Section 6.6.10, INVALID KEY Phrase
• Section 6.6.9, AT END Phrase
• Section 6.6.12, INTO Phrase
• Section 6.8.24, OPEN statement
• Section 6.8.40, UNLOCK statement
• Section 6.8.42, USE statement

Function

The RECORD statement creates an Oracle CDD/Repository dependency relationship between an HP COBOL program and the Oracle CDD/Repository entity referred to by the RECORD statement.

path-name

is a partial or complete Oracle CDD/Repository path name. It specifies a dictionary entity in CDO format.

relation-type

is a valid Oracle CDD/Repository protocol. It specifies the type of relationship to be created between the HP COBOL program and the CDO dictionary entity specified in the path name. The default relationship type is CDD$COMPILED_DEPENDS_ON.

Syntax Rules

1. A space must precede the word RECORD.
2. The RECORD statement must be terminated by the separator period.

General Rules

1. path-name refers to the Oracle CDD/Repository path for a dictionary entity. The entity must be in CDO format.
2. The RECORD statement creates an Oracle CDD/Repository relationship between the HP COBOL program through a compiled module entity (see Technical Notes) and the dictionary entity specified in the path name. This relationship information is then stored in Oracle CDD/Repository.
3. The RECORD statement is ignored unless the /DEPENDENCY_DATA compiler option is specified.
4. If the RECORD statement is in a contained program, the relationship created is between the outermost containing program and the entity specified in the path name.

Technical Notes

1. The path-name can be a nonnumeric literal or COBOL word formed according to the rules for user-defined names. It represents a complete or partial Oracle CDD/Repository path name specifying an Oracle CDD/Repository entity. If path-name is not a literal, the compiler translates hyphens in the COBOL word to underscore characters.
   The resultant path name must conform to all rules for forming Oracle CDD/Repository path names.
2. The relation-type can be a nonnumeric literal or COBOL word formed according to the rules for user-defined names. It must be a valid Oracle CDD/Repository protocol type. For example:
   • CDD$COMPILED_DEPENDS_ON is an example of a COBOL word that is a valid Oracle CDD/Repository protocol type.
   • "CDD$COMPILED_DERIVED_FROM" is an example of a nonnumeric literal that is also a valid Oracle CDD/Repository protocol type.
3. The RECORD statement creates a relationship between an Oracle CDD/Repository compiled module dictionary entity and the dictionary entity specified in the path name. A compiled module entity is automatically created and stored in Oracle CDD/Repository when the /DEPENDENCY_DATA compiler option is specified. The name of the compiled module entity is the program-name from the PROGRAM-ID paragraph, with hyphens translated to underscores.

Additional References

• The description of Oracle CDD/Repository in the HP COBOL User Manual
• Oracle CDD/Repository Documentation Set <>

Function

The RELEASE statement transfers records to the initial phase of a sort operation.

rec

is the name of a logical record in a sort-merge file description (SD) entry. It can be qualified.

src-area

is the identifier of the data item that contains the data.

Syntax Rules

1. A RELEASE statement can be used only in an input procedure in the same program as the SORT verb. The input procedure must be associated with a SORT statement for the sort or merge file that contains rec.
2. If src-area is a function-identifier, it must reference an alphanumeric function. When src-area is not a function-identifier, rec and src-area must not reference the same storage area.

General Rules

1. See the FROM Phrase section for a list of rules.
2. The RELEASE statement transfers the contents of rec to the first phase of the sort.
3. After the RELEASE statement executes, the record is no longer available in rec unless the associated sort or merge file-name is in a SAME RECORD AREA clause. In that case, the record is available to the program as a record of the sort-merge file-name. It is also available as a record of all other file-names in the same SAME RECORD AREA clause.

Additional References

• Section 4.2.10, I-O-CONTROL paragraph in Chapter 4
• Section 6.6.11, FROM Phrase phrase

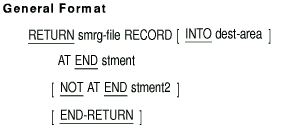

Function

The RETURN statement obtains sorted records from a sort operation. It also returns merged records in a merge operation.

smrg-file

is the name of a file described in a sort-merge file description (SD) entry.

dest-area

is the identifier of the data item to which the returned smrg-file record is moved.

stment

is an imperative statement executed for an at end condition.

stment2

is an imperative statement executed for a not at end condition.

Syntax Rules

1. A RETURN statement can be used only in an output procedure in the same program as the SORT verb. The output procedure must be associated with a SORT or MERGE statement for smrg-file.
2. The storage area associated with dest-area and the record area associated with smrg-file cannot be the same storage area.

General Rules

1. See the INTO Phrase section for a list of rules.
2. When more than one record description describes the logical records for smrg-file, the records share the same storage area. The contents of storage positions beyond the range of the returned record are undefined when the RETURN statement ends.
3. Before the output procedure executes, the File Position Indicator is updated. It points to the record whose key values make it first in the file. If there are no records, the File Position Indicator indicates the at end condition.
4. The RETURN statement makes the next record (pointed to by the File Position Indicator) available in the record area for smrg-file.
5. The File Position Indicator is updated to point to the next record in smrg-file. The key values in the SORT or MERGE statement determine the next record.
6. If smrg-file has no next record, the File Position Indicator is updated to indicate the at end condition.
7. If the File Position Indicator indicates the at end condition when the RETURN statement executes, stment executes and control is transferred to the end of the RETURN statement. If the NOT AT END phrase is specified, it is ignored. The contents of the smrg-file record areas are undefined.
8. If the File Position Indicator does not indicate an at end condition when the RETURN statement executes, after the record is made available and after executing any implicit move resulting from the presence of an INTO phrase, control is transferred to stment2, if specified. Otherwise, control is transferred to the end of the RETURN statement.
9. When the at end condition occurs:
   • RETURN statement execution is unsuccessful.
   • The File Position Indicator is not changed.
10. See the Scope of Statements section for a description of scope terminators such as END-RETURN.
