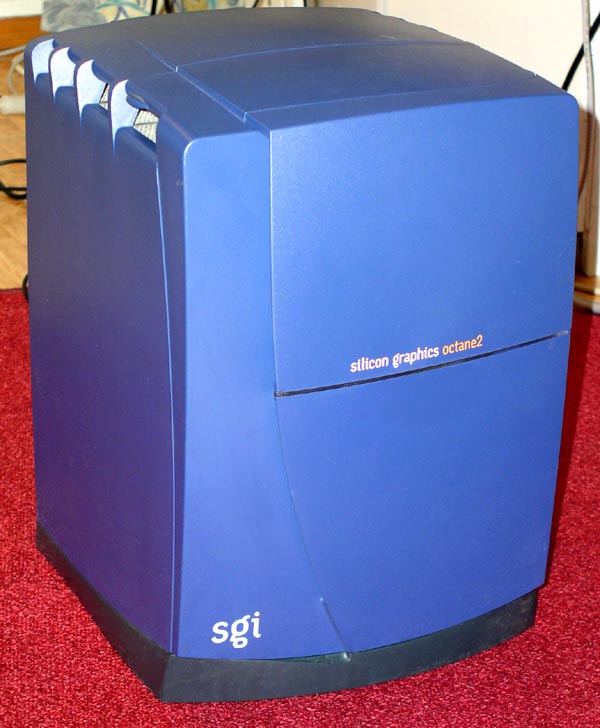

Silicon Graphics Octane2 ("SPEEDRACER") |
HOSTNAME | OCTOPUS2 |
SYSTEM CPU | MIPS R12000A @400 MHz |
CACHE (2nd, 1st D/I) |
2 MB, 32 KB / 32 KB |
RAM | 1 GB (Max.8 GB) |
SYSTEM BUS WIDTH |
64 bit |
SCSI BUS | 2 x UW SCSI (40 MB/s) Qlogic QL1040B
chips |
OPTION BUS | 4 x XIO slots |
GRAPHICS | V6, 24-plane 1280x1024 @96Hz |
DISPLAY |
Samsung SyncMaster 959NF
Monitor |
HARD DISK DRIVE | 73 GB Ultra160 SCSI 10K RPM Quantum Atlas |
CD-ROM DRIVE | 24x Teac UltraSCSI |
NETWORK | Onboard 10/100baseT |
AUDIO |
Onboard audio chip, 2 x 16-bit
analog stereo I/O, 2 x 24-bit AES-3id I/O and 8 x 24-bit ADAT optical
I/O |
OS | IRIX 6.5.24m |
YEAR | 2000 |
SPEED | 897 VAX MIPS |
COMMENTS | IRIX on this machine is very fast to use.
At the moment of writing it is also still supported by SGI (IRIX
6.5.22 and later). |
ESTIMATED PRICE '00 | $25,000 |
1 400 MHZ IP30 Processor Heart ASIC: Revision F CPU: MIPS R12000 Processor Chip Revision: 3.5 FPU: MIPS R12010 Floating Point Chip Revision: 0.0 Main memory size: 1024 Mbytes Xbow ASIC: Revision 1.4 Instruction cache size: 32 Kbytes Data cache size: 32 Kbytes Secondary unified instruction/data cache size: 2 Mbytes Integral SCSI controller 0: Version QL1040B (rev. 2), single ended Disk drive: unit 1 on SCSI controller 0 (unit 1) Integral SCSI controller 1: Version QL1040B (rev. 2), single ended CDROM: unit 6 on SCSI controller 1 IOC3/IOC4 serial port: tty1 IOC3/IOC4 serial port: tty2 IOC3 parallel port: plp1 Graphics board: V6 Integral Fast Ethernet: ef0, version 1, pci 2 Iris Audio Processor: version RAD revision 12.0, number 1 |
