ZXnet http server: Sun Ultra 10 Parts List

Menu:

Manufacturers

Sun Systems
Sun Microsystems logo

Boot PROM
Socket Manufacturing
Part #
Patch
U2703 370-3886 106121

CPU Module
Option # Manufacturing
Part #
Description
n/a 501-5149 440MHz UltraSPARC IIi Module
n/a 501-4379 300MHz UltraSPARC IIi Module
n/a 501-5040 300MHz UltraSPARC IIi Module
n/a 501-5090 333MHz UltraSPARC IIi Module
n/a 501-5222 360MHz UltraSPARC IIi Module
n/a 501-5568 333MHz UltraSPARC IIi Module

Cables
Option # Manufacturing
Part #
Description
X3856A 180-1179 Power Cord, RoHS:Y
530-2383 External SCSI Cable, HD68 to HD68, 0.8M
X470A 530-2357 Video Connector Adapter, 13W3F to HD15M
X901A 530-1884 External SCSI Cable, HD68 to HD68, 80cm
X902A 530-1885 External SCSI Cable, HD68 to HD68, 2M
X903A 530-2115 External SCSI Cable, HD50 to HD68, 1.2M
X904A 530-2228 External SCSI Cable, HD50 to HD68, 2M
n/a 530-2961 RJ45 Cat5 Ethernet Cable, RoHS:Y

Communication
Option # Manufacturing
Part #
Description
X1035A 370-2811 FDDI/P SAS 1.0
X1036A 370-2812 FDDI/P DAS 1.0
X1039A 375-0001 Token Ring Interface PCI (TRI/P) 1.0
X1040A 370-2728 High Speed Serial Interface PCI (HSI/P) 1.0
X1041A 370-2810 Serial Asynchronous Interface PCI (SAI/P) 1.0
X1066A 501-3028 SunATM-155/MFiber PCI 3.0
X1067A 501-3027 SunATM-155/UTP PCI 3.0
X1068A 501-3029 SunATM-622/MFiber PCI 3.0
X1152A 370-2811 FDDI/P SAS 2.0
X1153A 370-2812 FDDI/P DAS 2.0
X1154A 375-0001 Token Ring Interface PCI (TRI/P) 4.0
X1155A 370-2728 High Speed Serial Interface PCI (HSI/P) 2.0
X1156A 370-2810 Serial Asynchronous Interface PCI (SAI/P) 2.0
X1157A 501-3028 SunATM-155/MFiber PCI 4.0
X1158A 501-3027 SunATM-155/UTP PCI 4.0
X1159A 501-3029 SunATM-622/MFiber PCI 4.0
X2154A 375-0073 Token Ring Interface (TRI/P) 5.0
X2156A 375-0100 Serial Asynchronous Interface PCI (SAI/P) 3.0

Disks
Option # Manufacturing
Part #
Description
X5227A 370-3176 Seagate ST34342A
(4.3GB - 4500 RPM - IDE Disk)
X5236A 370-3693 Seagate ST39120A
(9.1GB - 7200 RPM - IDE Disk)
370-3693 Seagate ST39111A
(9.1GB - 7200 RPM - IDE Disk)
370-3693 IBM DJNA-370910
(9.1GB - 7200 RPM - IDE Disk)
370-3693 Seagate ST39140A
(9.1GB - 7200 RPM - IDE Disk)
X6174A 20GB 7200RPM Ultra ATA Disk Drive
370-4327 Seagate ST320011A
(20.1GB - 7200 RPM - IDE Disk)
370-4327 Seagate ST320414A
(20.1GB - 7200 RPM - IDE Disk)
370-4327 Seagate ST320420A
(20.4GB - 7200 RPM - IDE Disk)
n/a 370-5560 Seagate ST320011A
(20.4GB - 7200 RPM - IDE Disk)

Ethernet
Option # Manufacturing
Part #
Description
X1033A 501-5019 Sun FastEthernet PCI Adapter (FE/P) 2.0
X1034A 501-5406 Quad FastEthernet PCI (QFE/P)
X1044A 375-0002 Gigabit Ethernet PCI (GBE/P) 1.0
X1141A 501-4373 Gigabit Ethernet PCI (GBE/P) 2.0
X1150A 501-5902 Sun GigaSwift Ethernet UTP (Copper)
X1151A 501-5524 Sun GigaSwift Ethernet MMF (Fiber)
X2069A 501-5426 Gigabit Ethernet FC-AL/P
X3150A 501-5902 Sun GigaSwift Ethernet UTP (Copper)
X3151A 501-5524 Sun GigaSwift Ethernet MMF (Fiber)
X467A 595-3780 MII to AUI Converter

Graphics
Option # Manufacturing
Part #
Description
X1089A 370-4072 SunVideo Plus
X3660A 370-2256 PGX 8-Bit Color Frame Buffer
X3662A 501-4789 Creator Series 3 (FFB2+)
X3663A 501-5690 Creator3D Series 3 (FFB2+)
X3664A 501-5484 Elite3D-m3
X3665A 540-3902 Elite3D-m6
X3668A 370-3753 PGX32 8/24-Bit Color Frame Buffer
X3670A 501-5690 Creator3D Series 3 (FFB2+)
X3672A 501-4789 Creator Series 3 (FFB2+)
X3677A 501-5574 Elite3D-m3 Series 2 Accelerator
X3679A 540-4313 Elite3D-m6 Series 2 Accelerator
X3768A 370-4362 PGX64 8/24-Bit Color Frame Buffer

IDPROM
Socket Manufacturing
Part #
Component Type Host ID
U13 100-6889 48T59 NVRAM 8xxxxxxx
U13 525-1430 48T59 NVRAM 80xxxxxx
U13 525-1817 48T59 NVRAM 80xxxxxx

Input Device
Option # Manufacturing
Part #
Description
X180A 595-1865 SunButtons 32-key function I/O device
X190A 595-1737 SunDials 8-dial interactive graphics I/O for 3-D
X499A 595-5343 PCI Multimedia Kit
  • 370-1678
  • Sun Microphone II
  • 595-3723
  • CCD Camera II

Memory
Option # Manufacturing
Part #
Description
X7030A 370-3198 32MB DIMM, 60ns
X7031A 370-3199 64MB DIMM, 60ns
X7032A 370-3200 128MB DIMM, 60ns
X7033A 370-3201 256MB DIMM, 60ns
X7036A 370-3796 32MB DIMM, 50ns
X7037A 370-3797 64MB DIMM, 50ns
X7038A 370-3798 128MB DIMM, 50ns
X7039A 370-3799 256MB DIMM, 50ns
n/a 370-3211 16MB DIMM, 60ns

Miscellaneous
Option # Manufacturing
Part #
Description
X1131A-64.1 375-0075 SunPCi 300MHz
X1131A-64.2 375-0095 SunPCi 400MHz
X2131A 375-0131 SunPCi II 600MHz, 64MB memory
X2132A 375-3051 SunPCi IIpro 733MHz coprocessor card
X7035A 370-3801 SunPCi 128MB memory expansion
X7041A 370-3800 SunPCi 64MB memory expansion
X7042A 370-4294 SunPCi II 128MB memory expansion
X7044A 370-4295 SunPCi II 256MB memory expansion
X7045A 370-4430 SunPCi IIpro 512MB memory expansion
n/a 370-3197 PCI Riser Board (no stiffener or bracket)
n/a 370-3982 PCI Riser Board (stiffener, no bracket)
n/a 540-4228 PCI Riser Board (stiffener and bracket)

Power
Option # Manufacturing
Part #
Description
n/a 370-3171 Mitac MPU-250REF 243 Watt Power Supply
n/a 370-4325 243 Watt Power Supply with Power Factor Correction

Removable Media
Option # Manufacturing
Part #
Description
X5246A 370-4353 48X EIDE CD-ROM [standard]
X6170A 370-3319 24X CD-ROM
X6171A 370-3694 32X EIDE CD-ROM [standard]
n/a 370-3159 Dual Density Floppy Drive

SCSI
Option # Manufacturing
Part #
Description
X1032A 501-5656 Single-Ended Ultra/Wide SCSI/FastEthernet (SunSwift PCI)
X5010A 375-0097 Single-Channel Single-Ended Ultra/Wide SCSI (PCI)
X6540A 375-0005 Dual Single-Ended Ultra/Wide SCSI (PCI)
X6541A 375-0006 Dual Differential Ultra/Wide SCSI (UDWIS/P)(HVD)

System Board
Option # Manufacturing
Part #
Description
n/a 375-0009 300/333MHz (Ultra 10)
n/a 375-0066 333/360/440MHz (Ultra 10)
n/a 375-0079 333/360/440MHz (Ultra 10)
n/a 375-0115 333/360/440MHz (Ultra 10)
n/a 375-3060 333/360/440MHz (Ultra 10)



Exploded View

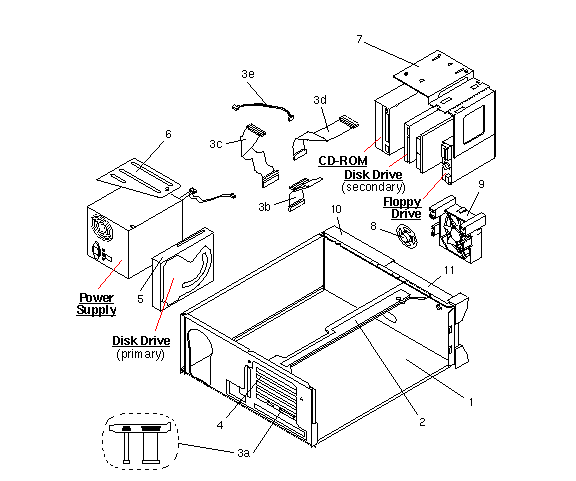

Ultra 10 Exploded View

Code Manufacturing Part# Description
1 n/a Chassis
2 n/a Chassis Stiffener
3 370-3267 Ultra 10 Cable Service Kit/FRU
3a
  • 370-3165
  • Serial B and Parallel Cable Assembly
3b
  • 370-3276
  • CD-ROM Cable
3b
  • 370-4944
  • CD-ROM Cable with Ferrite Filter
3c
  • 370-4227
  • Dual EIDE Disk Cable (replaced 370-3205)
3d
  • 370-3164
  • Floppy Cable
3e
  • 370-3275
  • Audio Cable
4 n/a PCI Filler Panel
5 370-3721 Primary/Rear Disk Bracket (9.1GB requirement)
5 n/a Primary/Rear Disk Bracket without Part Number
6 n/a Rear Disk Mounting Bracket Support Bracket
7 n/a CD-ROM, Disk, and Floppy Mounting Bracket
8 370-3264 Speaker Assembly
9 370-3169 9 Centimeter Fan
10 370-3690 Top Front Bezel with Power Switch
11 n/a Bottom Front Bezel
NS 370-4101 1/2-Height Peripheral Filler Panel Kit
NS
  • 340-4068
  • 5 1/4" Device Internal Filler Panel
NS
  • 370-4126
  • 5 1/4" Device External Filler Panel
NS 530-1871 RJ45 to RJ45 Cable, 4M
NS 530-2068 DB25 to 36-Pin Centronics Parallel Cable, 5M
NS n/a Floppy Bracket and PCMCIA Mounting Bracket
NS n/a Vertical Hold-down Bracket/Strut
NS n/a Side/Bottom Cover and Front Disk Mounting Bracket
NS n/a Right Side Chassis Stiffener
NS n/a External 1/2-Height Peripheral Filler Panel
