Indigo R3000
Hostname:	`magritte`	Hostaddress:	`192.168.1.26`
Hardware:	SGI Indigo R3000
Software:	IRIX 5.3
Owned since:	17th Januery 2003

Description:

System SGI Indigo Drives 4GB Harddisk

Processor R3000 at 33MHz Graphics XS-24Z

Memory 96MB Other none

About the SGI Indigo R3000

This is a first generation Indigo with an old R3000 processor running at 33Mhz. This version was replaced by a faster Indigo using a R4000 processor at 100Mhz. See my other Indigo R4K. They differ both in processor and mainboard, but they support the same graphic options.

Other general information on the SGI Indigo can be found on this page.

History of my System

I also got this machine from ebay.

hinv Output:

cyber 2# hinv -v
1 33 MHZ IP12 Processor
FPU: MIPS R2010A/R3010 VLSI Floating Point Chip Revision: 4.0
CPU: MIPS R2000A/R3000 Processor Chip Revision: 3.0
On-board serial ports: 2
On-board bi-directional parallel port
Data cache size: 32 Kbytes
Instruction cache size: 32 Kbytes
Main memory size: 96 Mbytes
Integral Ethernet: ec0, version 0
Integral SCSI controller 0: Version WD33C93B, revision C
Disk drive: unit 1 on SCSI controller 0
Iris Audio Processor: revision 10
Graphics board: GR2-XS24Z

cyber 3# /usr/gfx/gfxinfo -v
Graphics board 0 is "GR2" graphics.
        Managed (":0.0") 1280x1024
        1 GEs, 1 RE, 24 bitplanes, 4 auxplanes, 4 cidplanes, Z-buffer
        GR2 revision 2, VB1.1
        HQ2 rev A, GE7 rev B,  RE3 rev D, VC1 rev B, PIC rev 1.5
        19" monitor

Pictures:

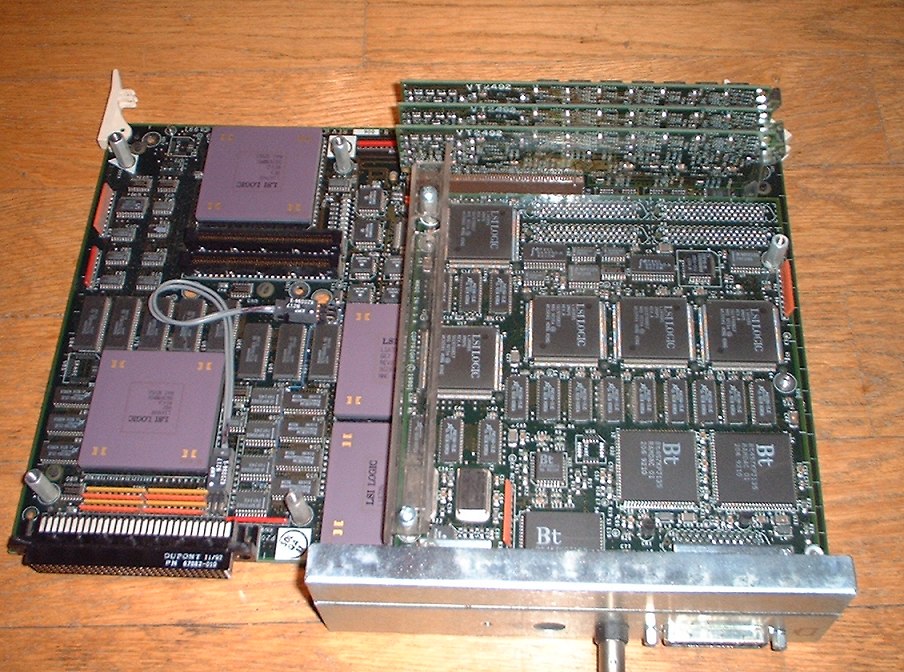

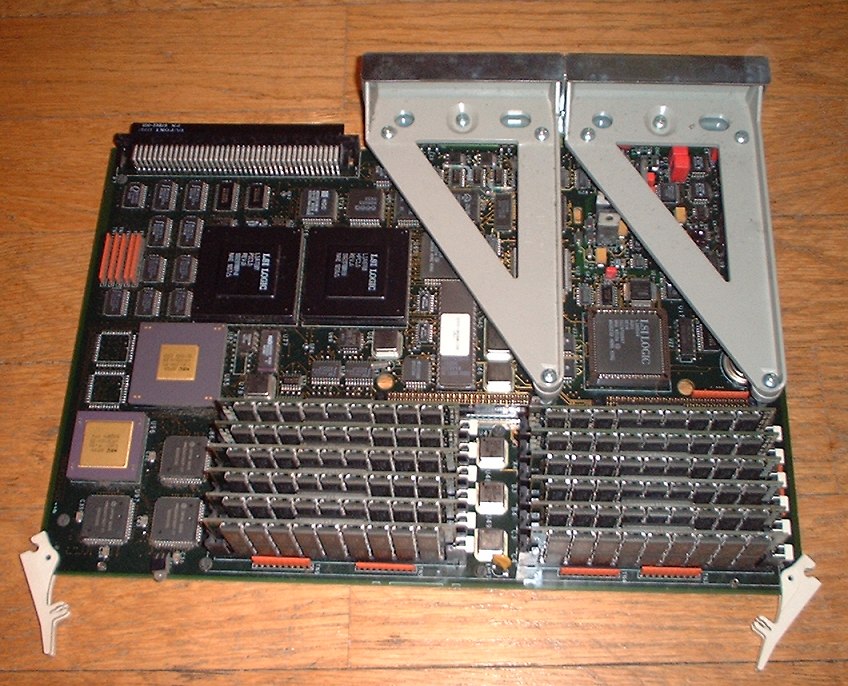

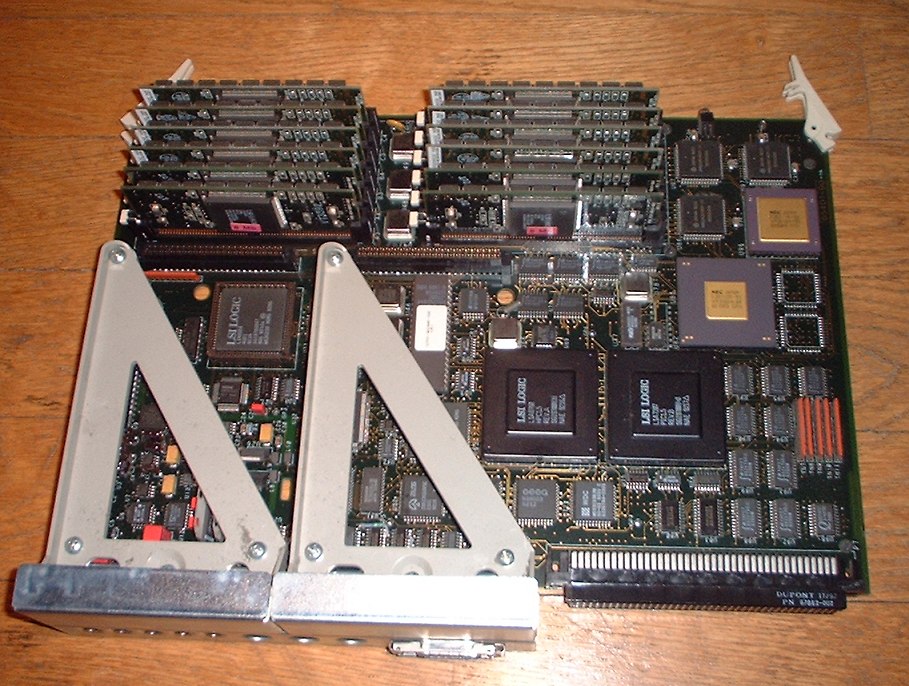

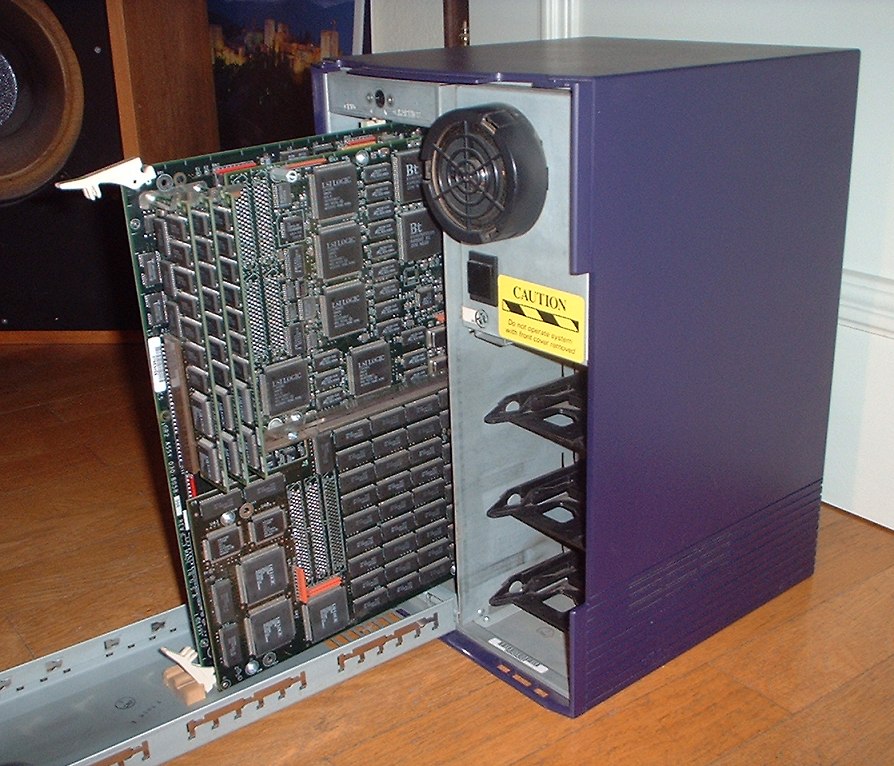

	The IP12 Board	The IP12 Board

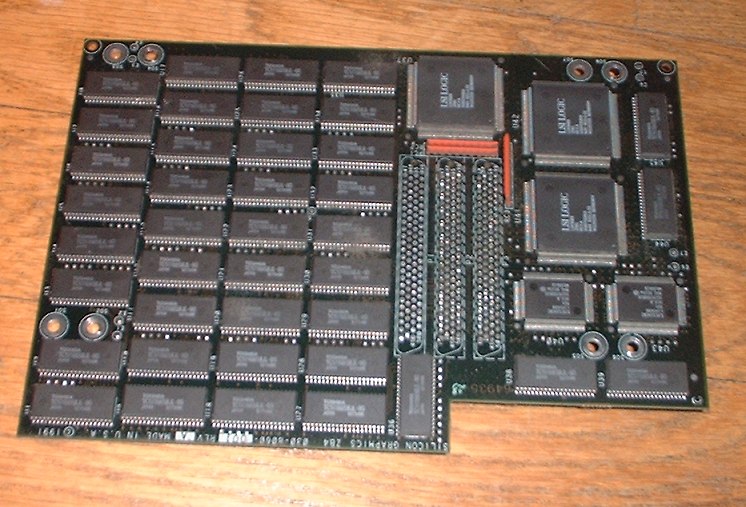

Proprietary RAM	The Z-Buffer	The Displaygenerator

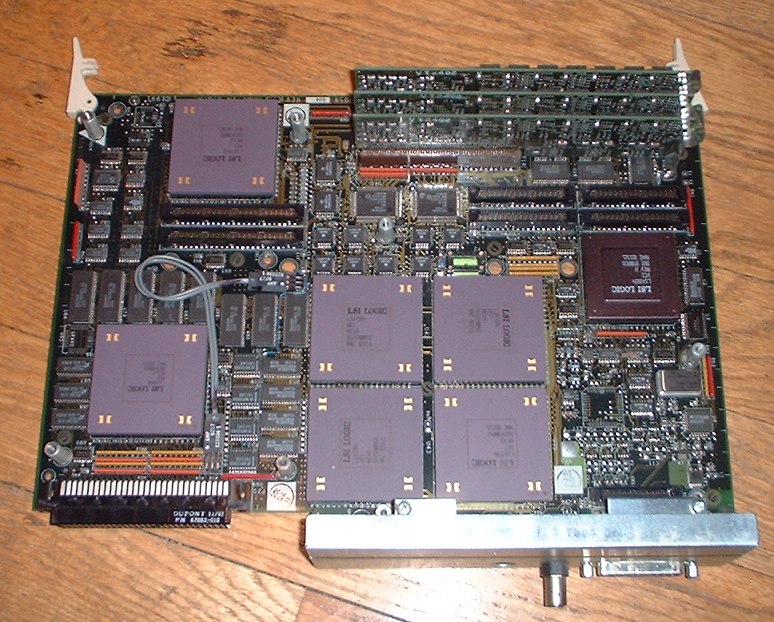

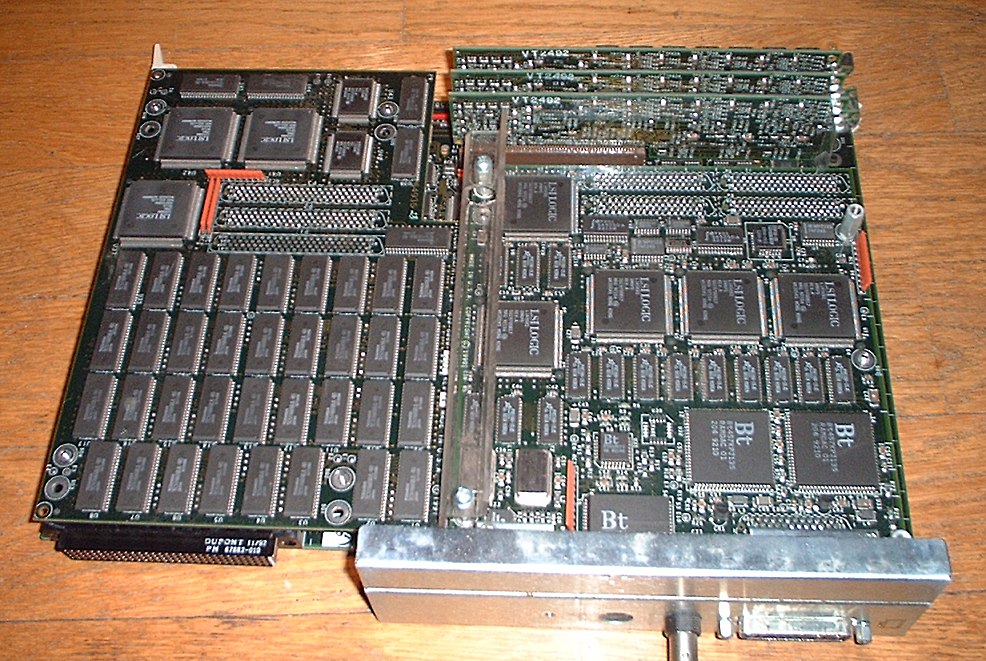

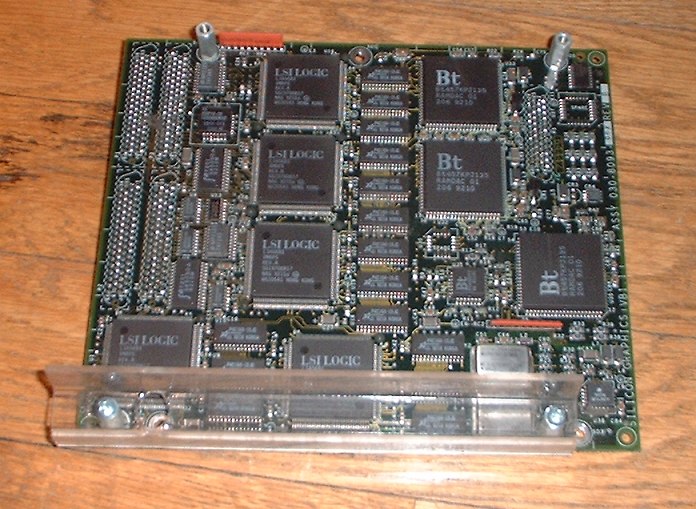

Elan Graphics Board	Elan without Z-Buffer	Naked Elan

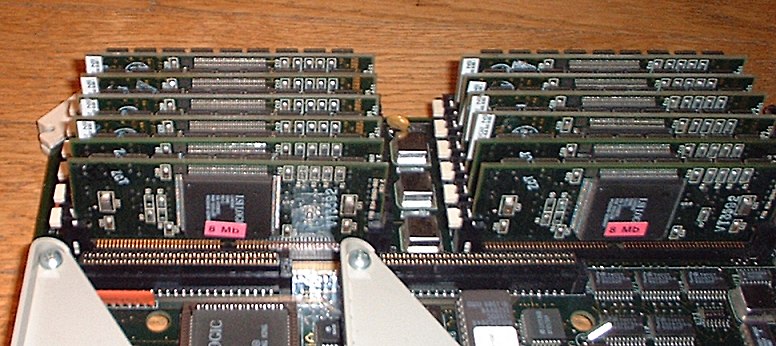

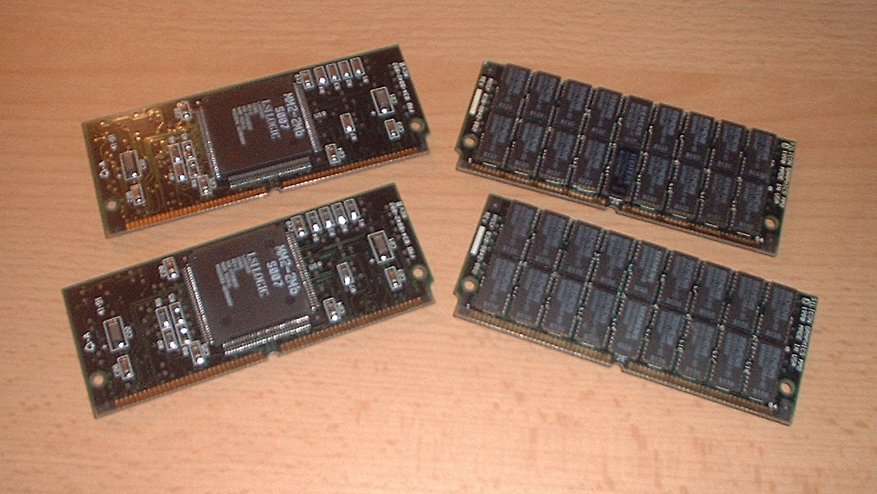

	Memory Modules

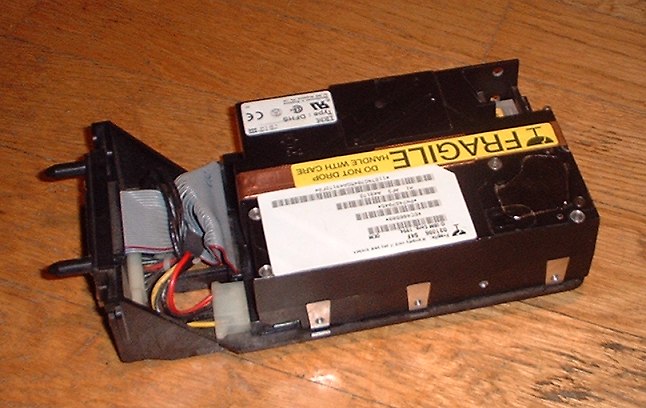

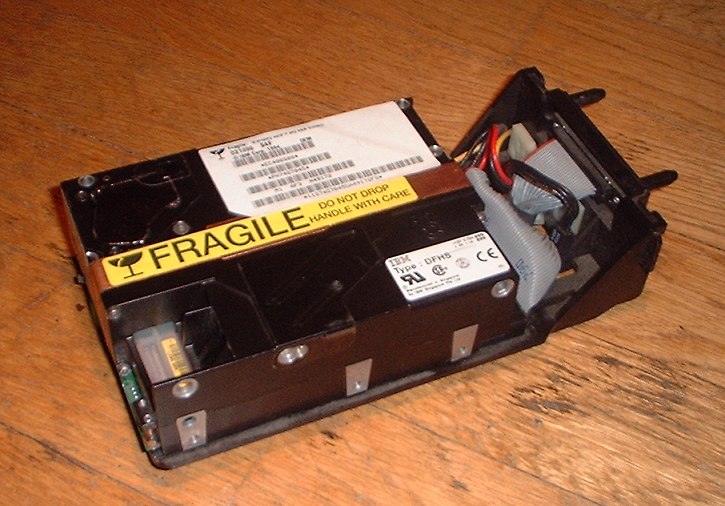

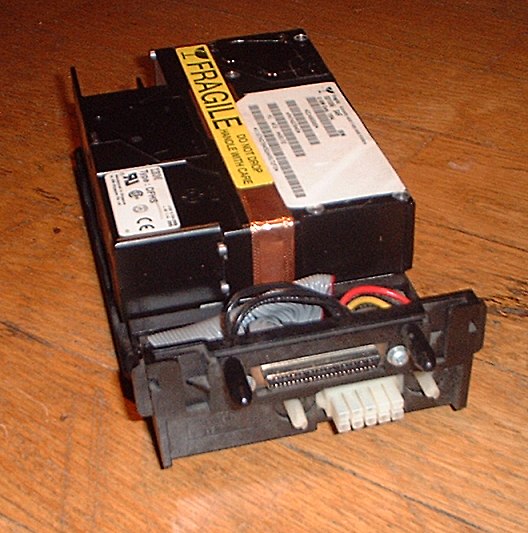

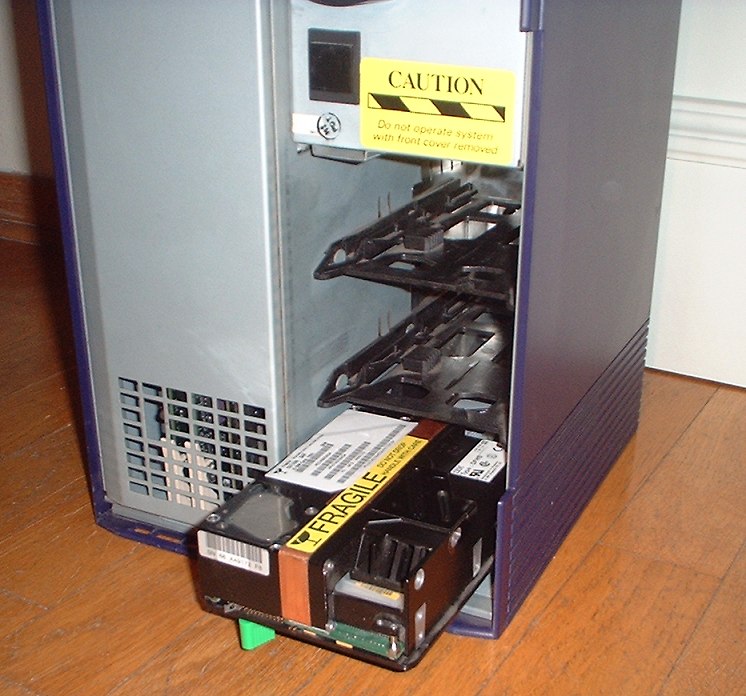

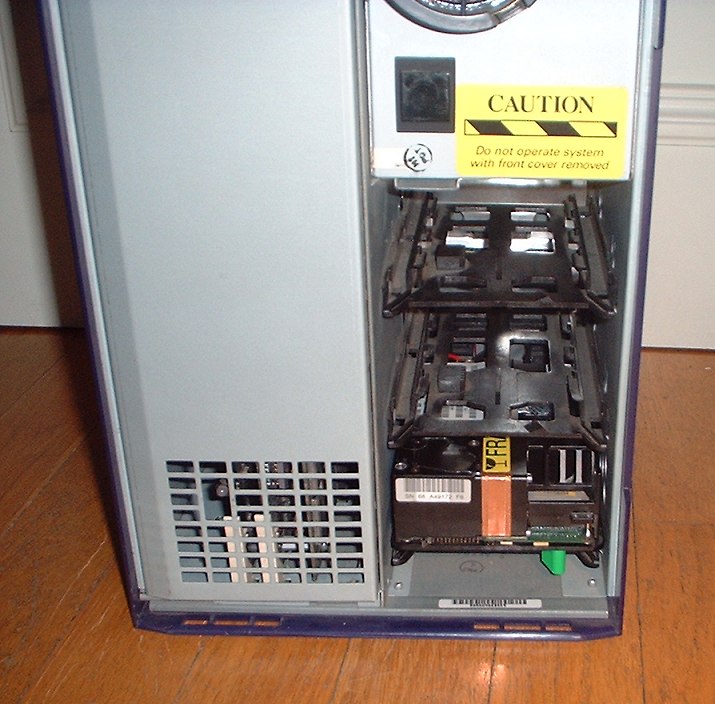

Harddrive on Sled
