Indy R5000
Hostname:	`braque`	Hostaddress:	`192.168.1.17`
Hardware:	SGI Indy R5000PC-150
Software:	IRIX 6.5
Owned since:	October 2002

Description:

System SGI Indy 5000 Drives 36GB Harddisc

Processor R5000PC at 150MHz Graphics XL24

Memory 192MB Other IndyCam

This is my central NIS and SAMBA server - the advantage of an Indy over other SGIs is the low noise level. And the advantage of an Indy over a PC based server is that it runs headless without any problems. I even don't need to plug in mouse or keyboard for booting. Plus I can shut down the Indy simply by pressing the power button.

Have a look at this page for general information on the SGI Indy.

hinv Output:

Indy 2% hinv -v
Iris Audio Processor: version A2 revision 4.1.0
1 150 MHZ IP22 Processor
FPU: MIPS R5000 Floating Point Coprocessor Revision: 1.0
CPU: MIPS R5000 Processor Chip Revision: 1.0
On-board serial ports: 2
On-board bi-directional parallel port
Data cache size: 32 Kbytes
Instruction cache size: 32 Kbytes
Main memory size: 192 Mbytes
Vino video: unit 0, revision 0, IndyCam not connected
Integral ISDN: Basic Rate Interface unit 0, revision 1.0
Integral Ethernet: ec0, version 1
Integral SCSI controller 0: Version WD33C93B, revision D
  Disk drive: unit 2 on SCSI controller 0
  Disk drive: unit 1 on SCSI controller 0
Graphics board: Indy 24-bit


Indy 3% /usr/gfx/gfxinfo
Graphics board 0 is "NG1" graphics.
        Managed (":0.0") 1280x1024
        24 bitplanes, NG1 revision 6, REX3 revision B, VC2 revision A
        MC revision C, xmap9 revision A, cmap revision D, bt445 revision D
        Display 1280x1024 @ 76Hz, monitor id 1

Pictures:

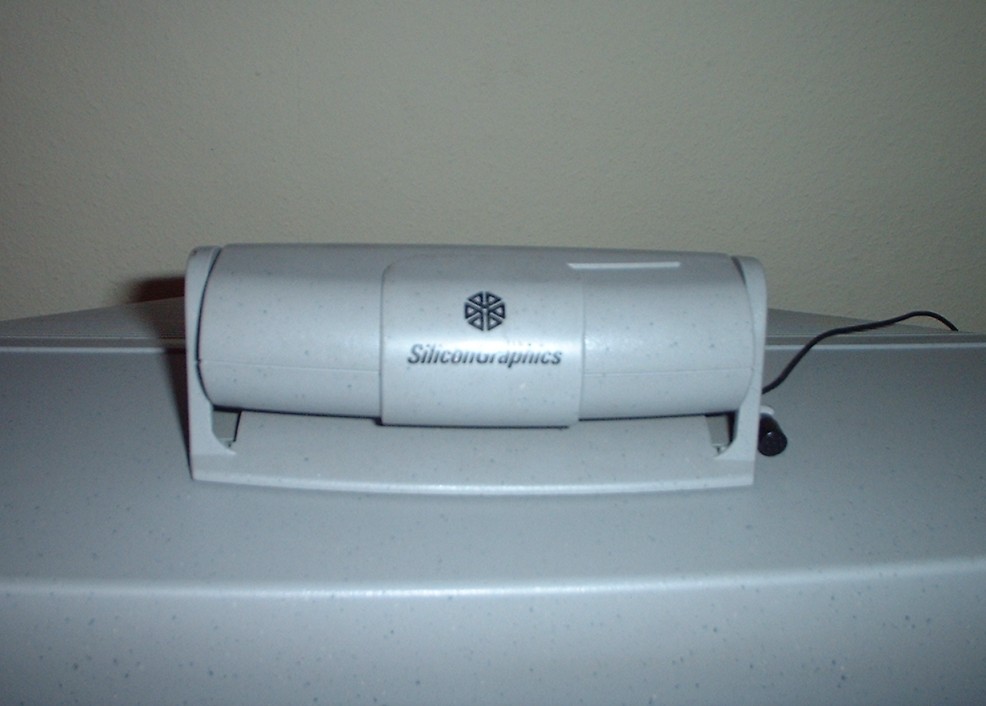

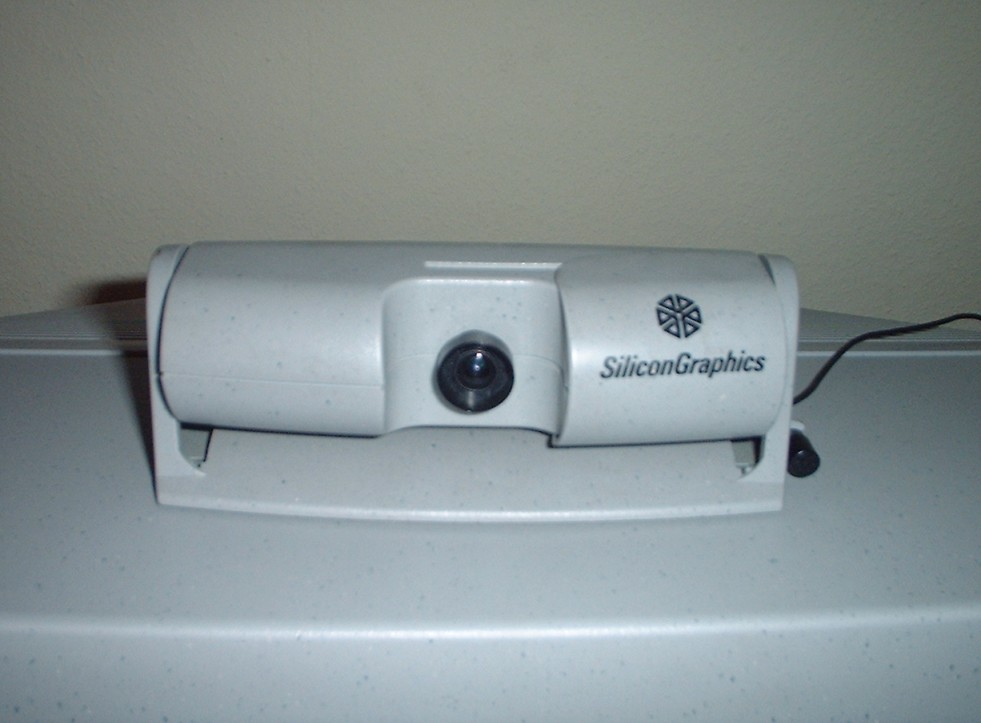

	The Indycam	The Indycam

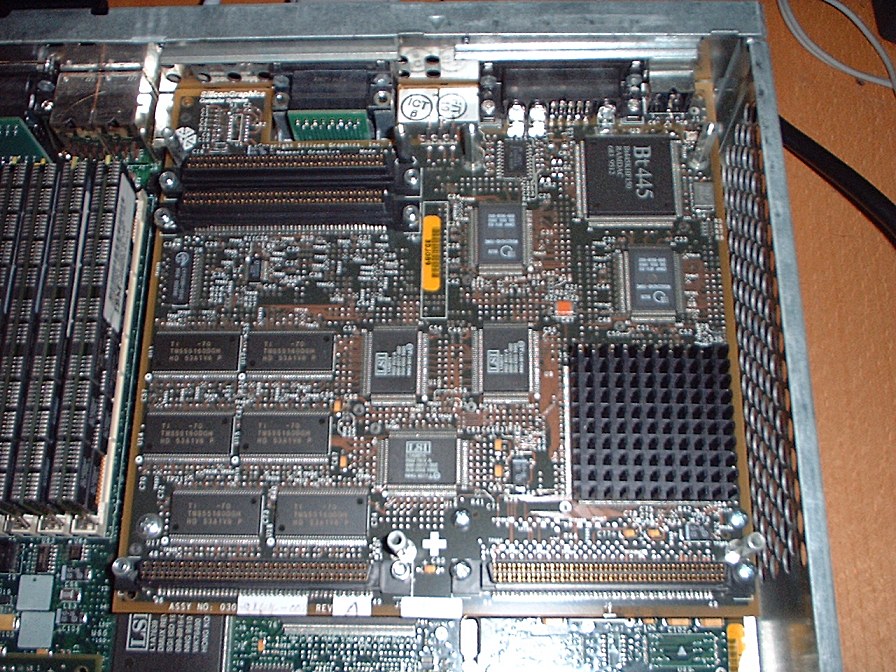

24Bit Graphics
