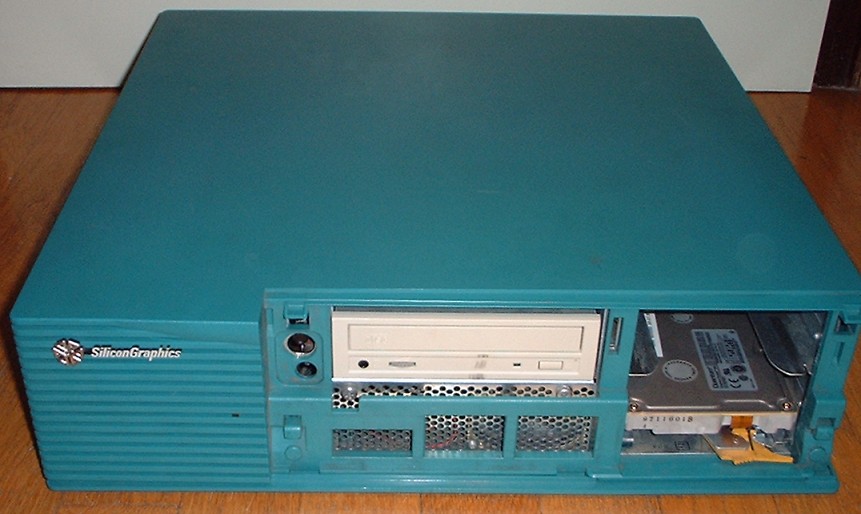

    Teal Indigo²
    Hostname: teal   Hostaddress: 192.168.1.22

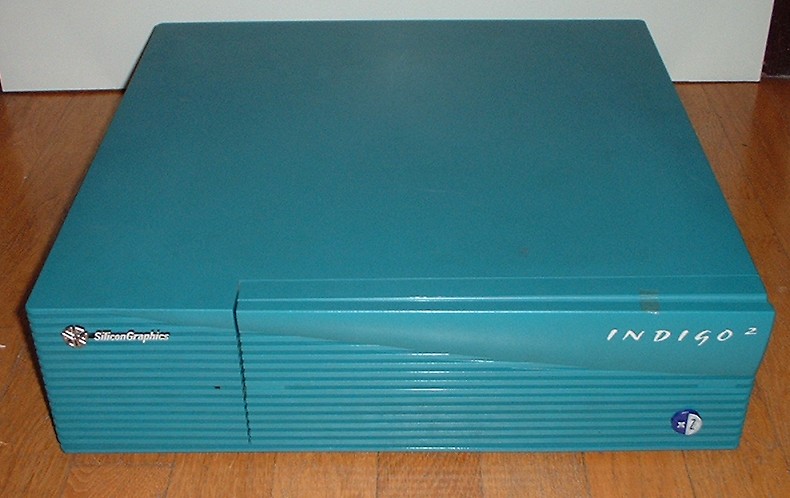

    Hardware: SGI Indigo²
    Software: IRIX 6.5
    Owned since: 23. December 2002
    description hinv pictures links
     Description:

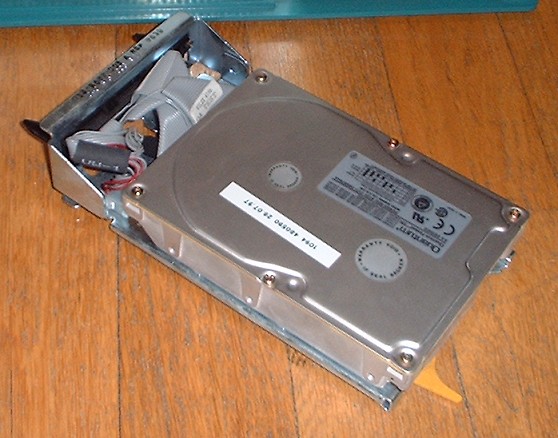

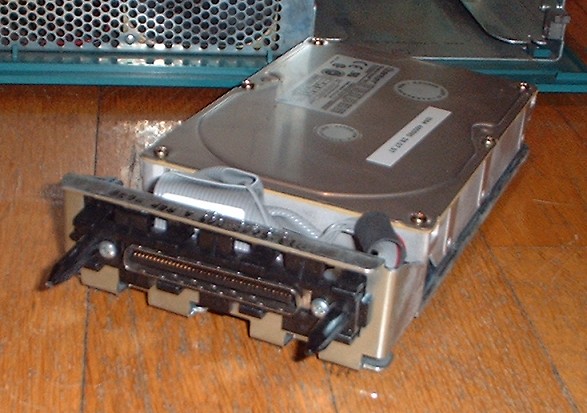

    System   SGI Indigo²   Drives   2GB Harddisc

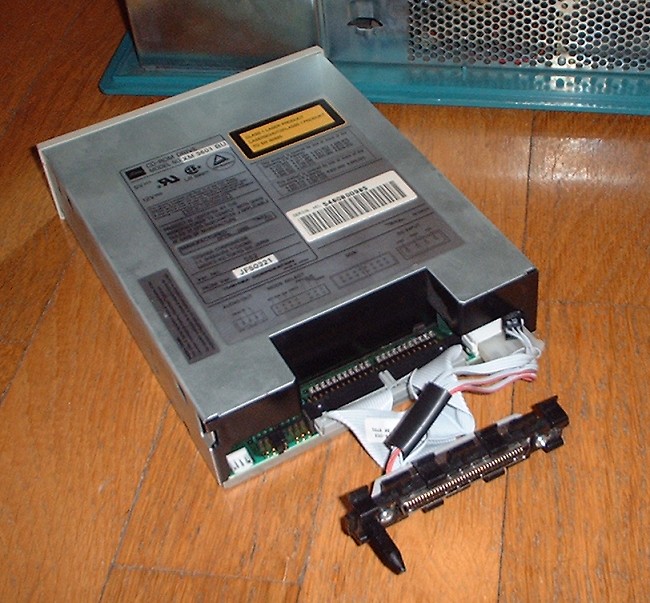

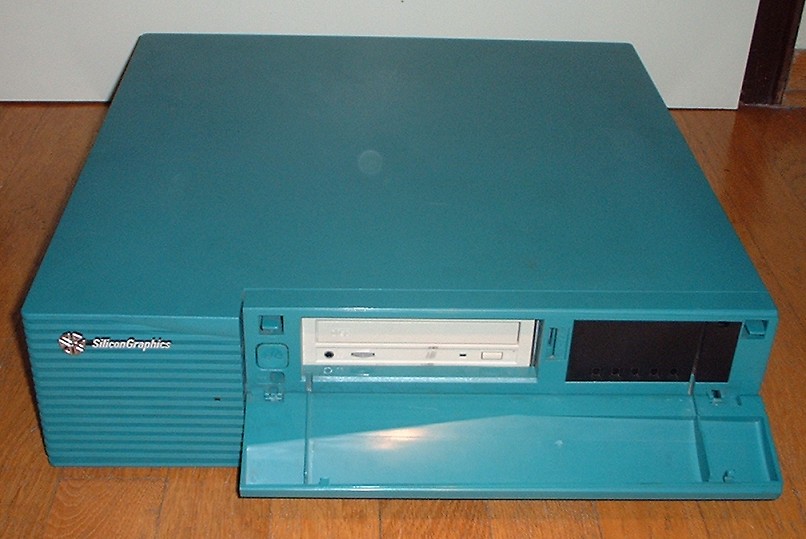

    CD-ROM
    Processor   R4400SC at 250MHz   Graphics   Extreme
    Memory   256MB   Other   Galileo Video Option

    See my other purple Indigo² for the newer version. For general information on the SGI Indigo, see this page.

    History of my System

    Finally I got hands on this system jst on 24th of December 2002. I added the Galileo option in August 2003, and tried to reinstall IRIX, but the Indigo² seems to have a bus error, thus the hinv is not updated yet.

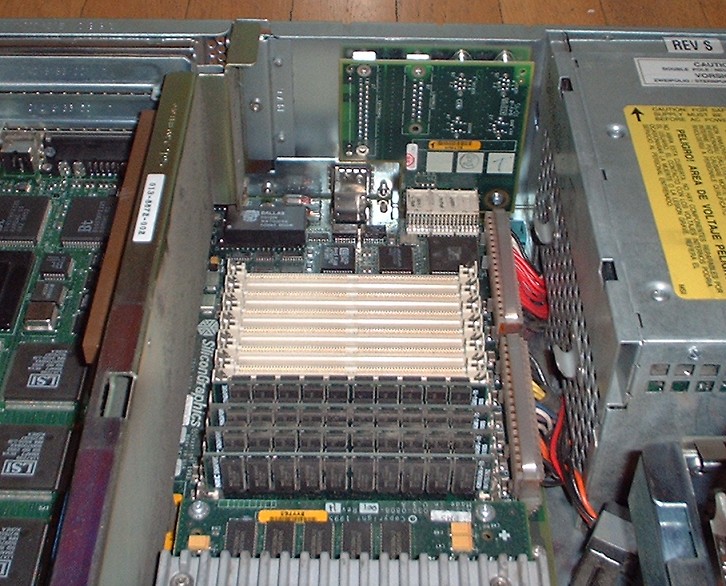

    Update: Now I finally managed to install IRIX 6.5. There seemed to be some faulty memory modules inside. But nevertheless I did not succeed in installing IRIX 5.3.

     hinv Output:
    teal 1# hinv -mv
CPU: MIPS R4400 Processor Chip Revision: 6.0
FPU: MIPS R4000 Floating Point Coprocessor Revision: 0.0
1 250 MHZ IP22 Processor
Main memory size: 256 Mbytes
Secondary unified instruction/data cache size: 2 Mbytes on Processor 0
Instruction cache size: 16 Kbytes
Data cache size: 16 Kbytes
Integral SCSI controller 0: Version WD33C93B, revision D
  Disk drive: unit 1 on SCSI controller 0 (unit 1)
  CDROM: unit 3 on SCSI controller 0
Integral SCSI controller 1: Version WD33C93B, revision D
On-board serial ports: 2
On-board bi-directional parallel port

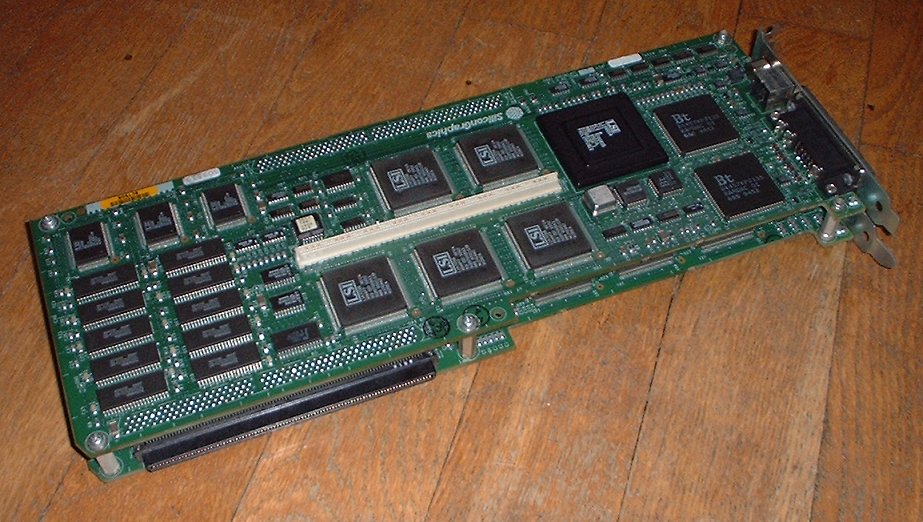

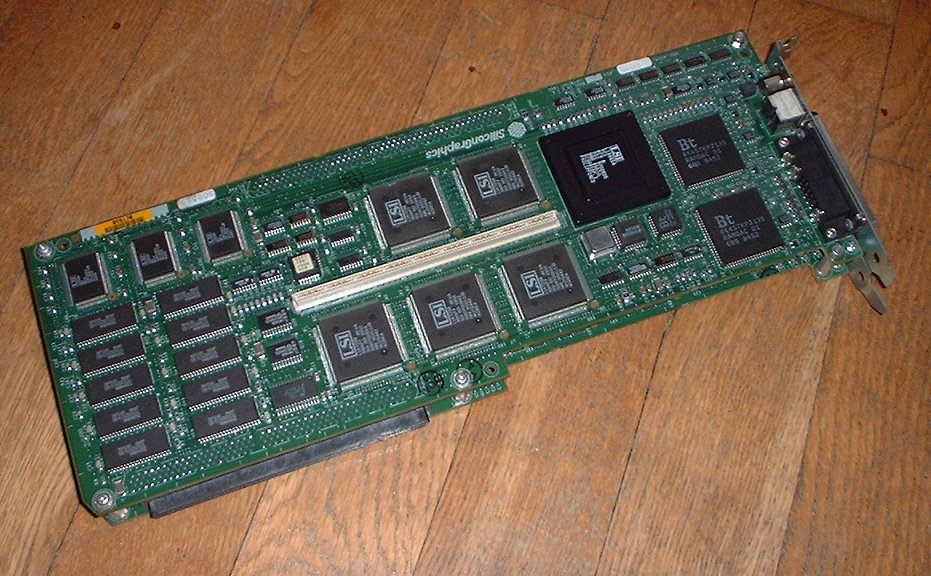

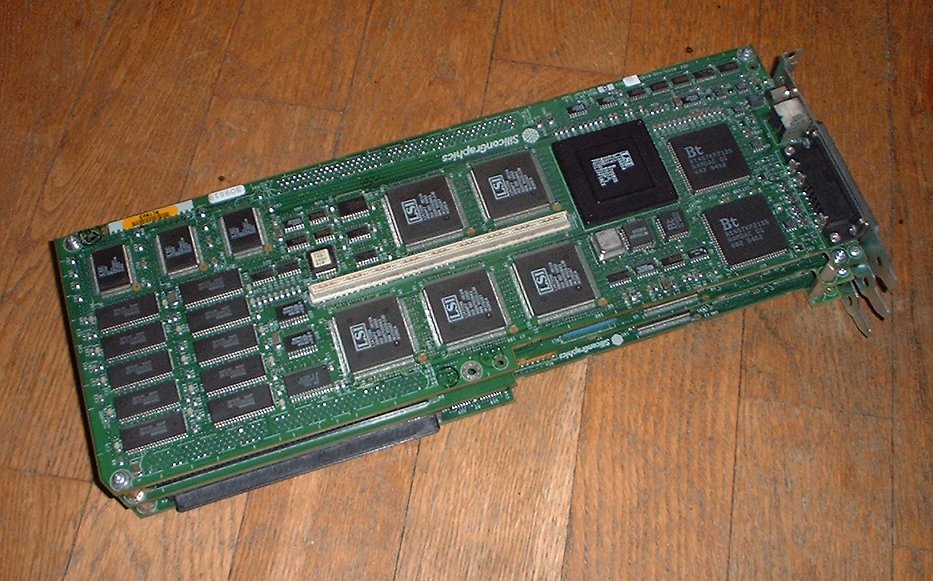

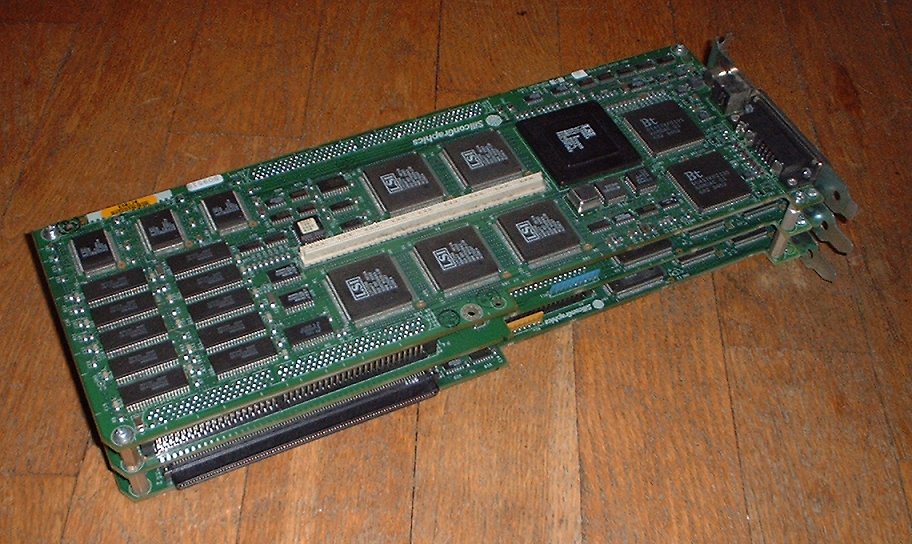

Graphics board: GU1-Extreme
Integral Ethernet: ec0, version 1
Iris Audio Processor: version A2 revision 1.1.0
Galileo video  (ev1): unit 0, revision 2.    Indycam connected.
EISA bus: adapter 0

teal 2# /usr/gfx/gfxinfo -v
Graphics board 0 is "GR2" graphics.
        Managed (":0.0") 1280x1024
        8 GEs, 2 REs, 24 bitplanes, 4 auxplanes, 4 cidplanes, Z-buffer
        GR2 revision 6, VB2.0
        HQ2.1 rev A, GE7 rev B,  RE3.1 rev A, VC1 rev B, MC rev C
        19" monitor
        Video board revision 2

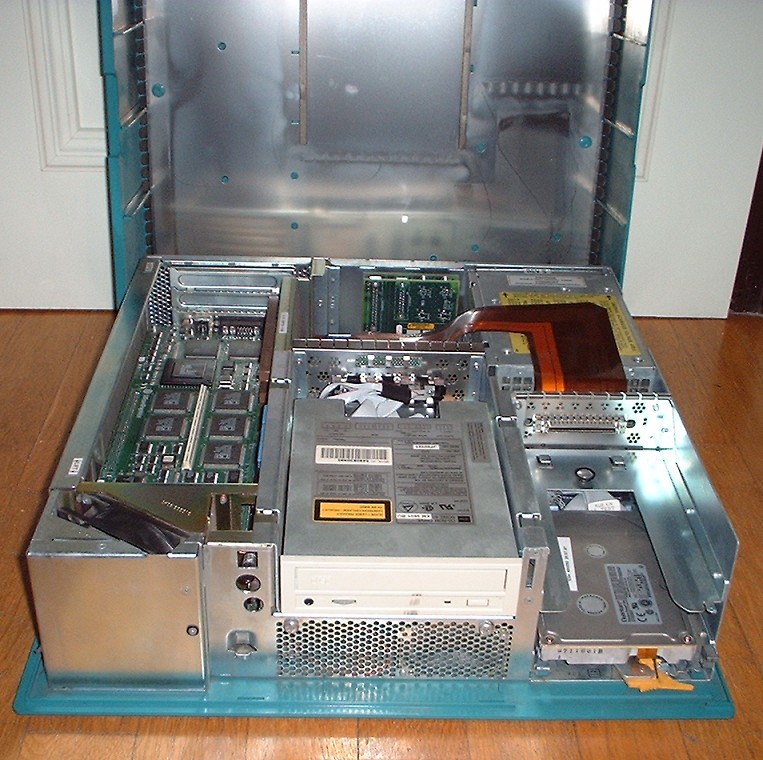

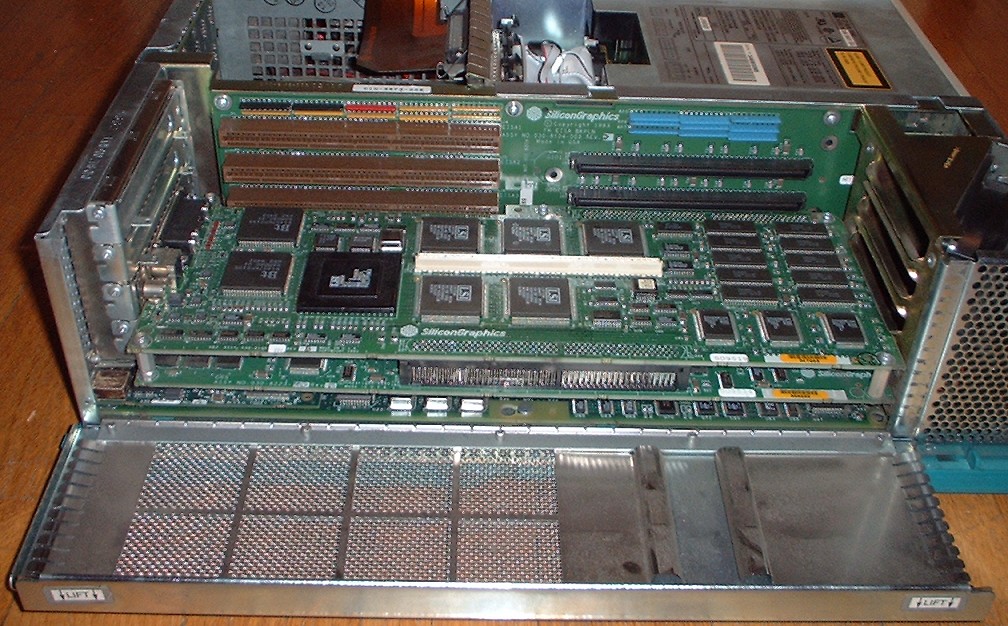

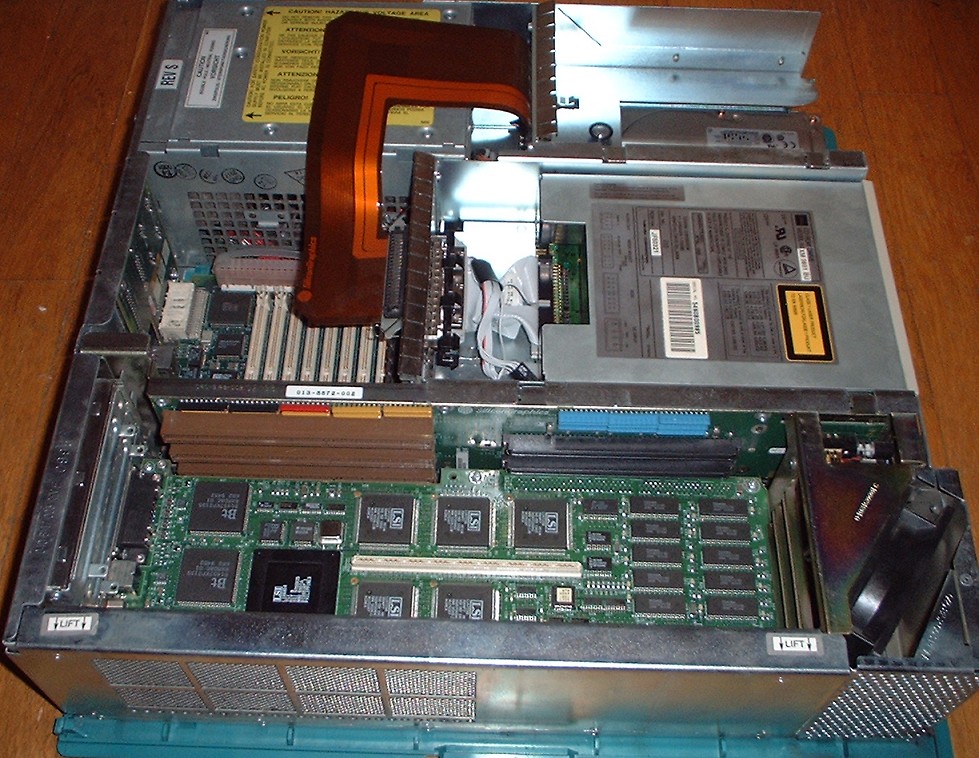

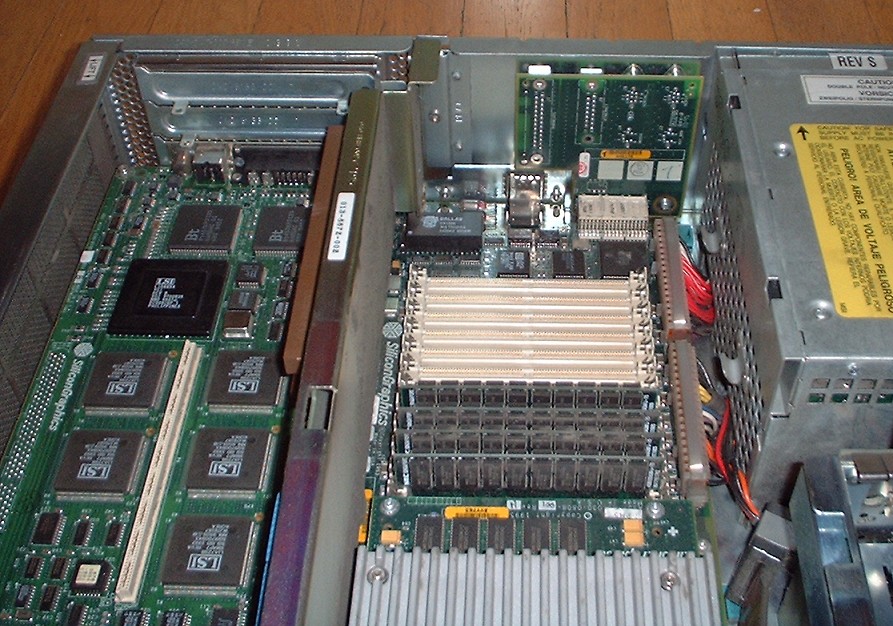

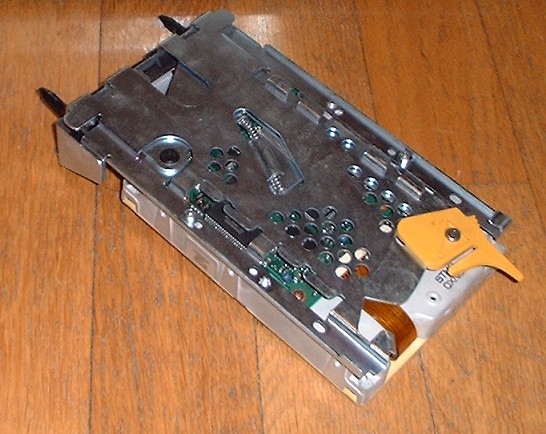

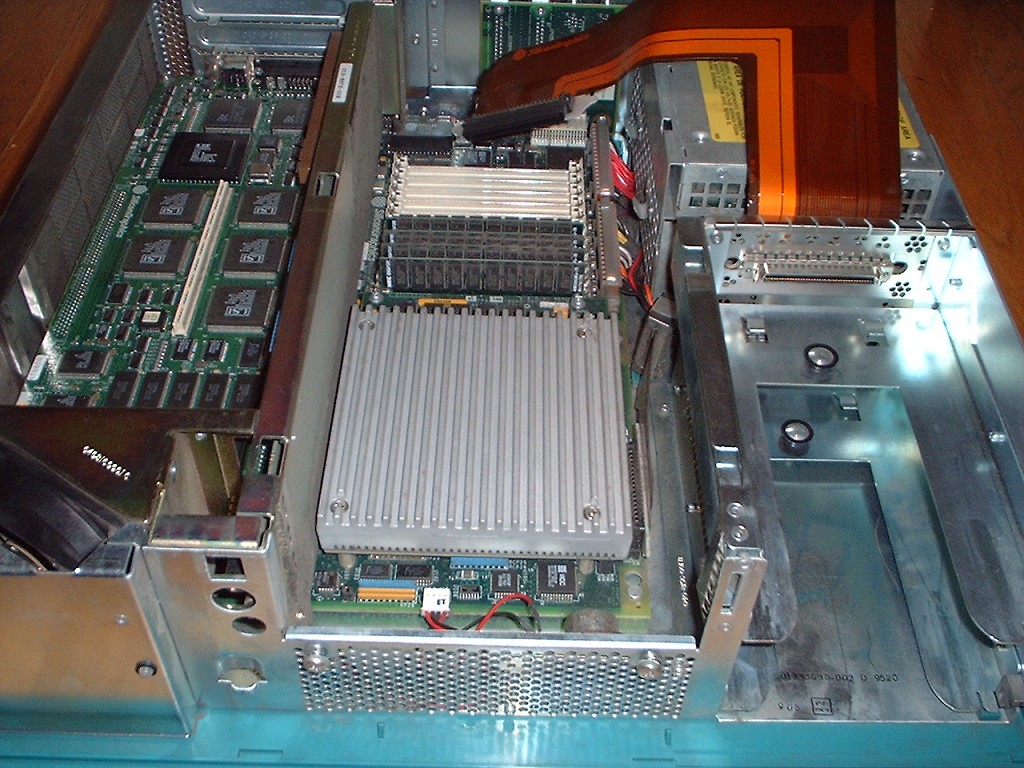

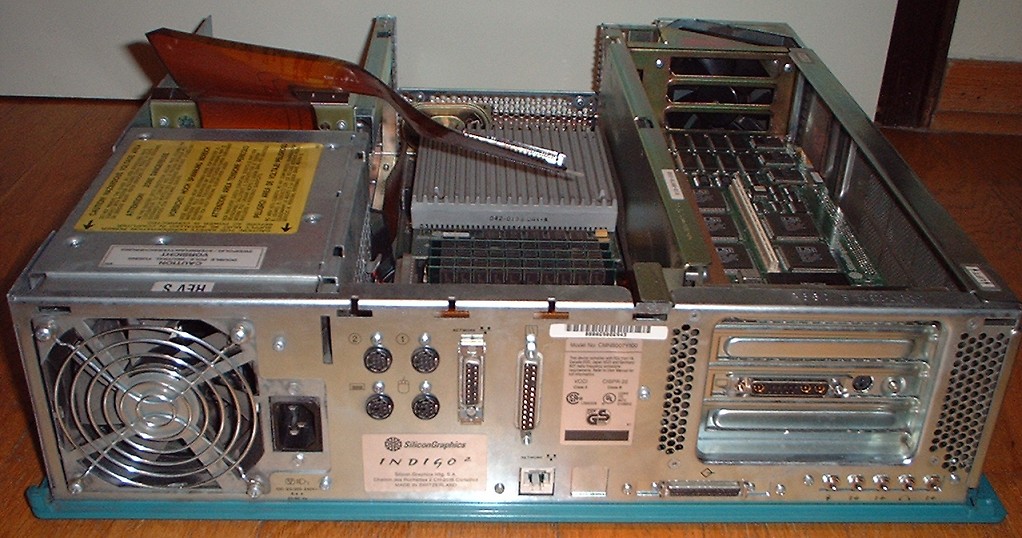

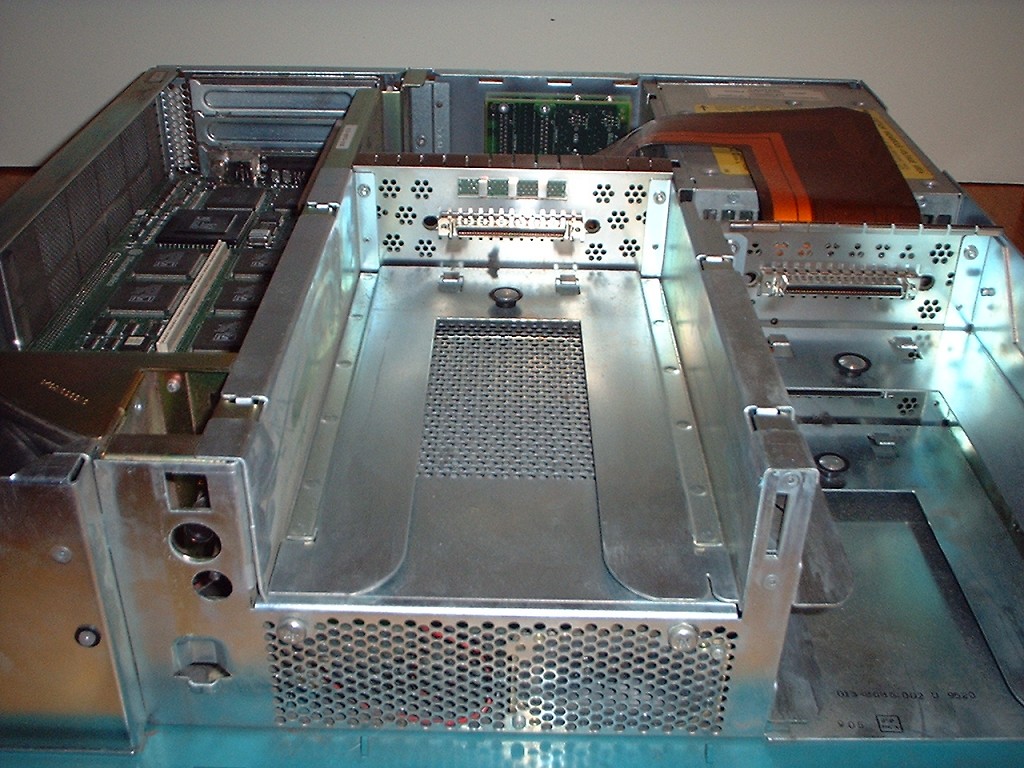

     Pictures:
